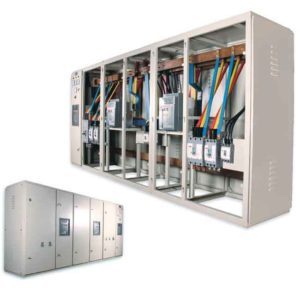

Product Introduction
N. H. Power is one of the leading manufacturers of HT switch-gears for electrical power distribution system in Bangladesh. It offers wide range of technologically advanced HT Switch-gear products that provide flexible options. From cutting-edge design that allow for easy access, maintenance and space-savings, to ecological accountability, NHPSDT’s HT switch-gear solutions meet the needs of essentially each purpose. The products are designed to ensure highest performance serving as a foundation for secure & highly reliable electrical networks.
Product Features
- Manufactured as per IEC 62271 norms Modular design Designed for Indoor and outdoor use.
- Compartmentalized structure.
- Live parts inaccessible for safety.
- Bottom opening for guiding power cable inside the panel directly from cable trench.
- Electrostatic powder coated & ergonomically designed enclosure.
- Rack-in/Rack-out of vacuum circuit breaker and safety interlock operations with front door closed.
- Withdraw-able voltage transformer (optional).
- Integral Earthing Switch (optional) with quick closing mechanism.
- Interlocking between V.C.B open/close position.
- Live Cable indication.
Product Specifications
- 11 kV and 33 kV Panels.
- Fixed and Draw-out execution.
- 630 A to 3150 A 11 kV/33 kV VCB panels.
- 630 A 11 kV LBS panels.
- 20 kA, 25 kA, 31.5 kA and 40 kA for 3 sec.
- Rating of Bus-bar: 800A to 2500A.
